New destination call system
bpTARGET
Efficiency in traffic flow
New destination call system
bpTARGET
Efficiency in traffic flow
bpTARGET
DESTINATION CALL SYSTEM
In commercial buildings with constant traffic flow and countless lift rides per hour, our destination call system bpTARGET is essential for increasing efficiency, reducing waiting times and improving the overall user experience.
Unlike traditional lifts where users select their desired floor within the cabin, destination call systems allow passengers to enter their destination before entering the lift. This advanced feature allows the system to group passengers travelling to the same or a nearby floor, optimising the lift‘s route and minimising the number of stops.
This results in faster travel times, reduced queues at peak times and greater energy efficiency by avoiding unnecessary lift stops. For businesses, this means smoother traffic flow, improved customer satisfaction and better time management, which is essential for maintaining both productivity and a positive environment in busy commercial buildings.
With an increasingly conscious and demanding market, where solutions against climate change is requested, the bpTARGET optimises travel efficiency by significantly reducing the number of stops and overall energy consumption.
This streamlined approach not only minimises waiting times but also reduces power consumption, contributing to energy savings and the fight against climate change. By improving operational efficiency, the system supports sustainability goals and meets the market’s eco-friendly expectations.
Facts
- Lift group control to increase passenger flow efficiency
- User friendly operation elements with touch screen for intuitive use
- Increase in transport capacity and performance
- Reduction of waiting and travel time
- Allocation of passengers to individual lifts
- Increase in user and ride comfort
- Reduction of energy consumption
- Less wear on the doors by reducing the number of stops
- Designed to work perfectly with our bp408 lift controller
- Integrated in bp408 without separate controller: Only corresponding CANopen display needed

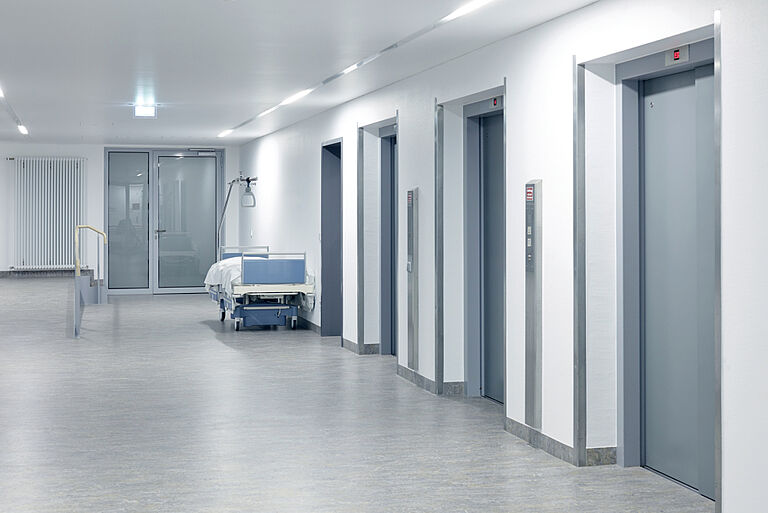

The bpTARGET is designed to improve traffic flow management in commercial buildings, hospitals, hotels, shopping malls, cruise ships and office buildings.
How it works

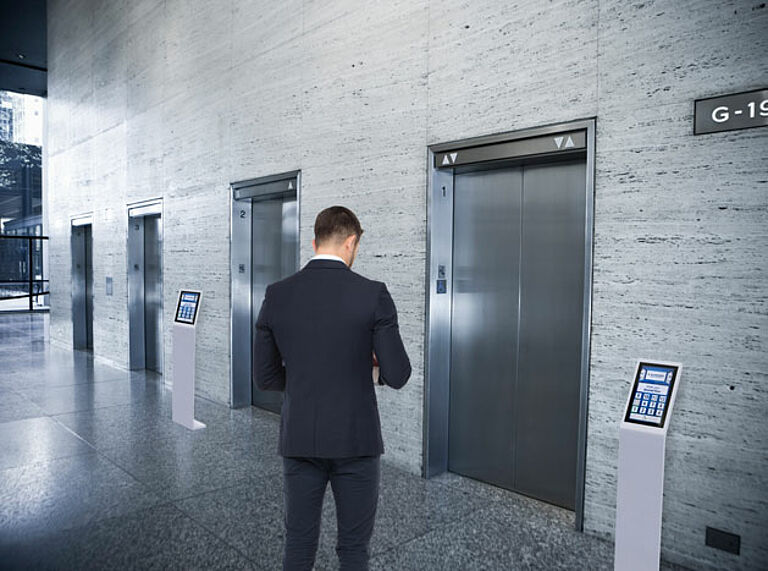

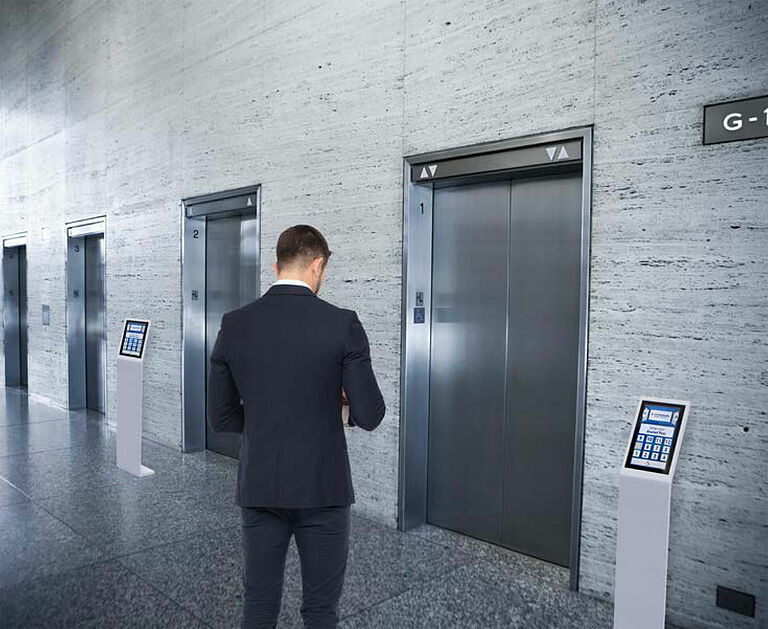

bpTARGET is an intelligent and efficient lift destination call system where the passenger selects the target floor in the lobby of the building instead of pressing the “up and down” button and selecting the desired floor in the car.
The system groups passengers by destination in the same lift, reducing the number of stops and optimising the lift travel – integrate bpTARGET to improve the transport experience in your building.
Improving traffic efficiency
- No more delayed lift travels by intermediate stops
- No more overcrowded lifts
- No more waiting lines
- No more struggling to press the floor button in a crowded lift car
Efficiency in traffic flow
Comparison of collective call control and destination call control at passenger peak.
A simplified situation with the following criteria is assumed:
- Busy office building with three car lift groups
- 12 passengers entering the building one after the other
- Passenger peak: all passengers travelling from the ground floor to the destination floor
- No traffic between floors

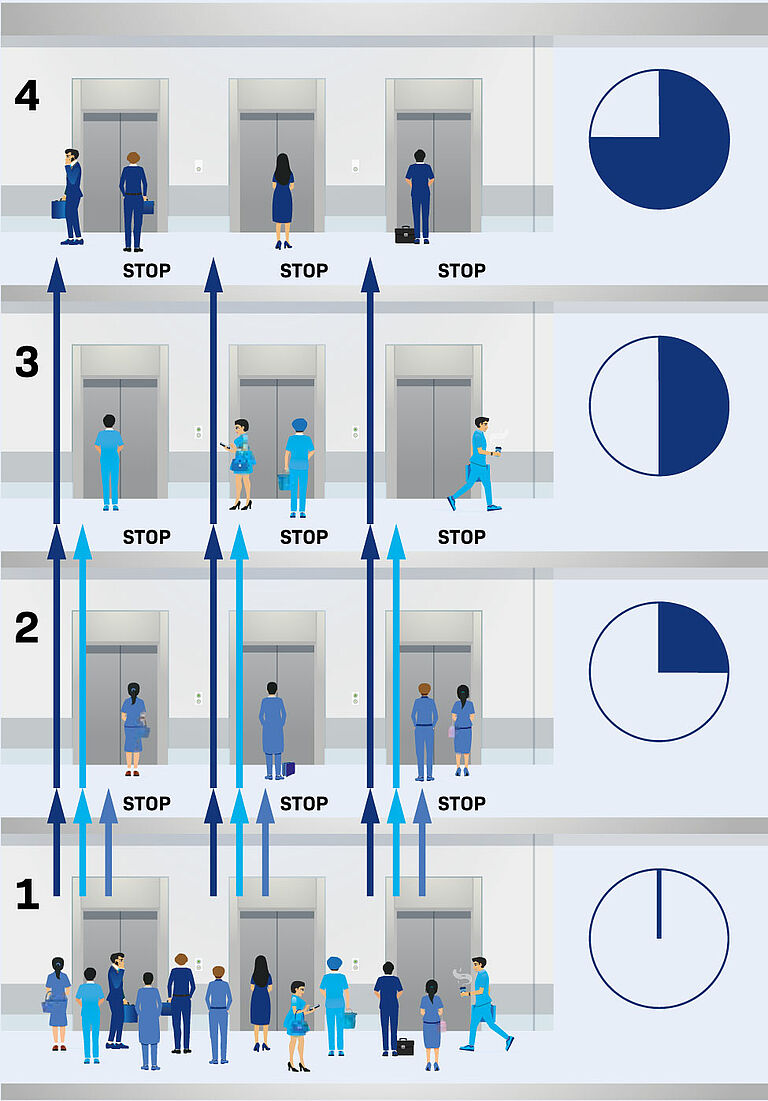

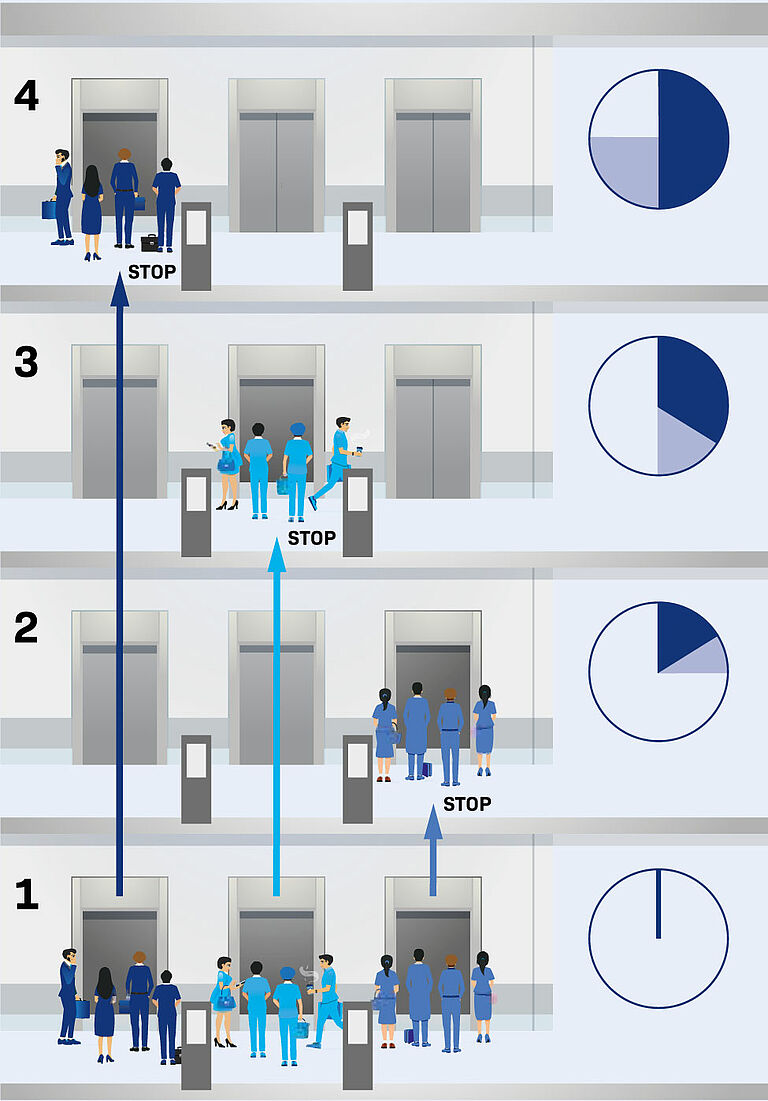

Schematic diagram of three car lift group
Collective control
Operation with bpTARGET destination call system:
- Reduction of stops and travelling time:
In above example:
Collective Control = 9 stops vs. bpTARGET = 3 stops
- Integrated in bp408, no separate controller required
- Only corresponding CANopen display needed
Destination call control

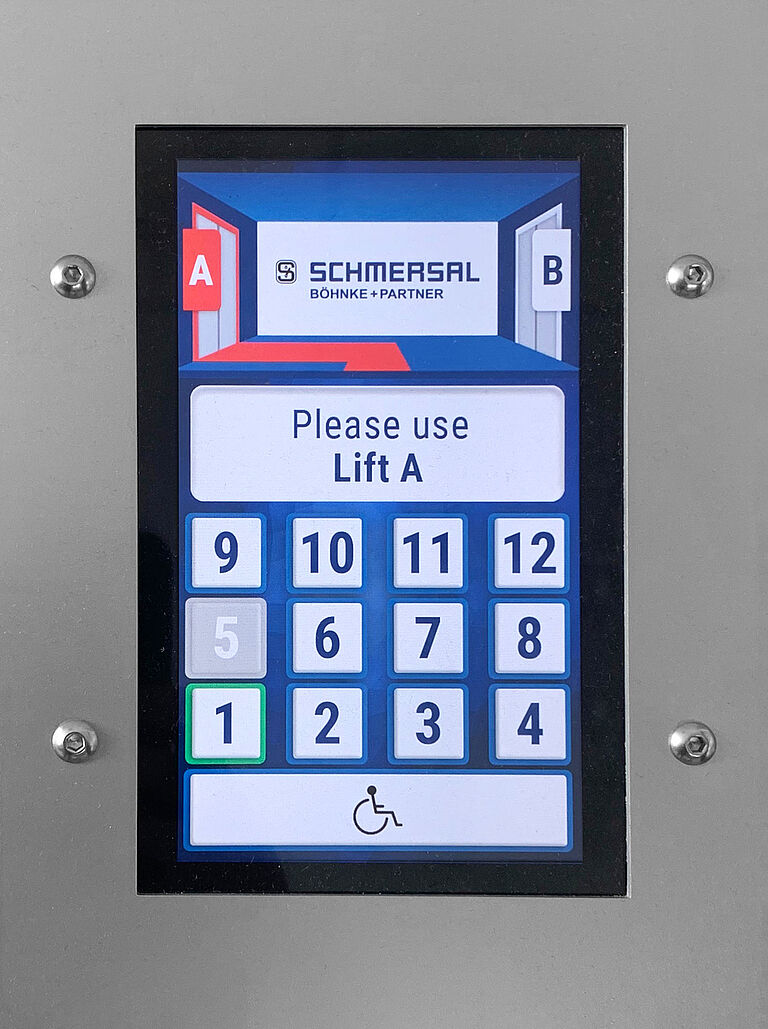

Touch screen

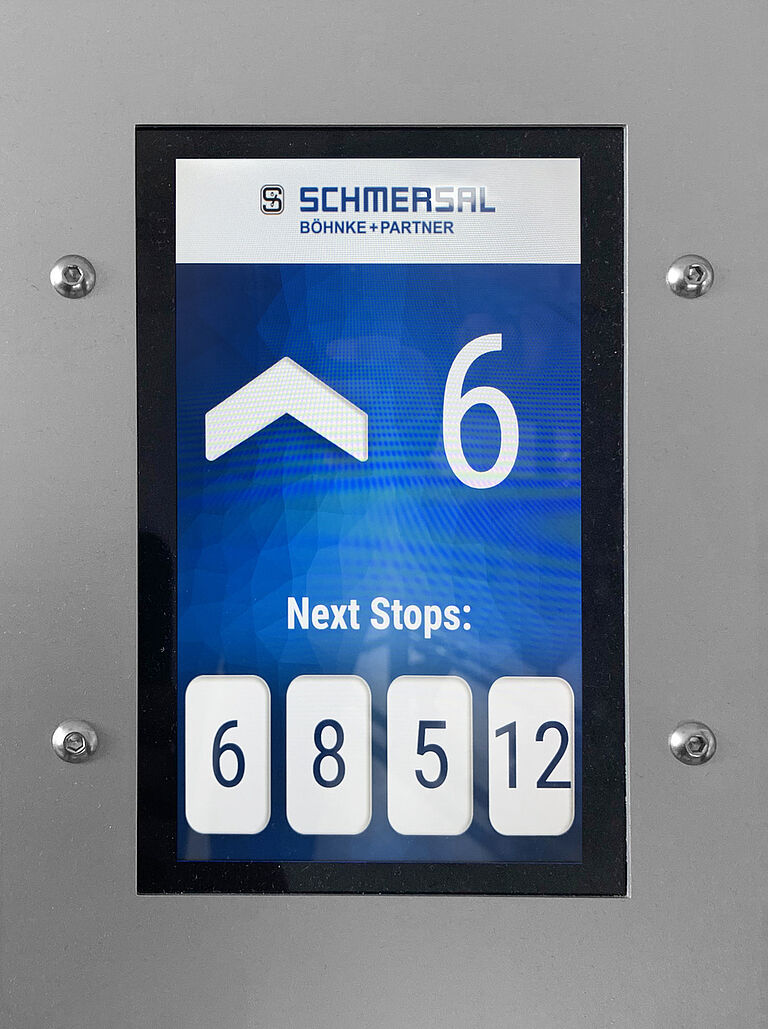

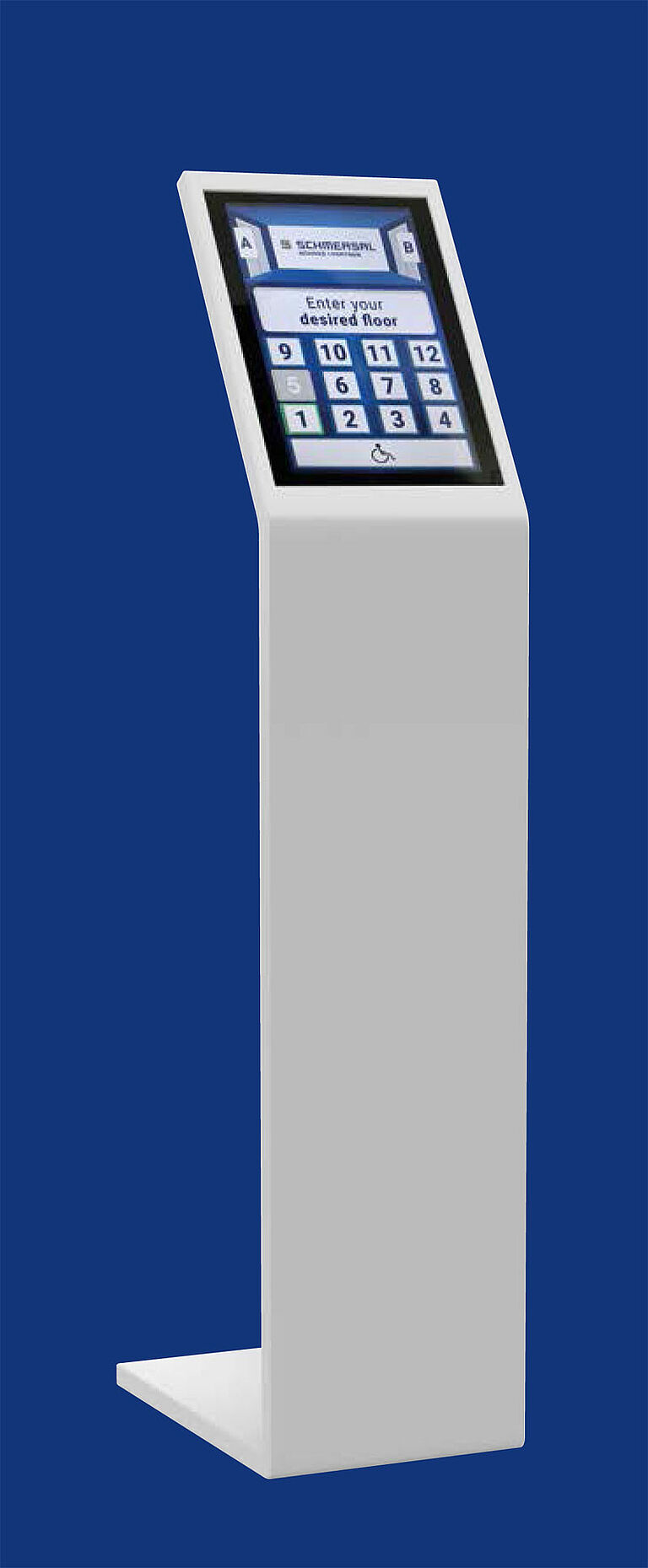

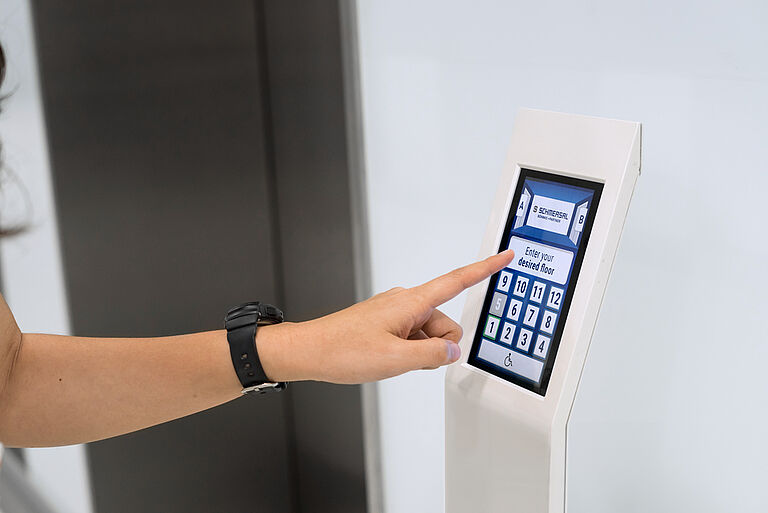

Our Touch Screen is designed to be mounted on the wall or in a column. The two different sizes allow to have a larger screen for the lift cabin and a smaller screen to be placed at the lift entrance on each floor.
The display layout can be personalised to suit the customer and building requirements.
Technical data:
| Touch screen 7" | Display 10,1" | |
| Key Features | Display designed to be placed at every door | Display designed to be placed at the lift cabin |
| Resolution | 1024 × 600 px | 1280 × 800 px |
| Active area | 154 × 85 mm | 217 × 136 mm |
| Housing dimension (H × W × D) | 202 × 138 × 30 mm | 272 × 190 × 30 mm |
| Weight | 0,5 kg | 1 kg |
| Supply voltage | 24 VDC | 24 VDC |
| Starting current (max.) | 1,5 A | 1,5 A |
| Energy requirements | 8 W | 10 W |
| Ambient temperature | −20 °C … +50 °C | −20 °C … +50 °C |
